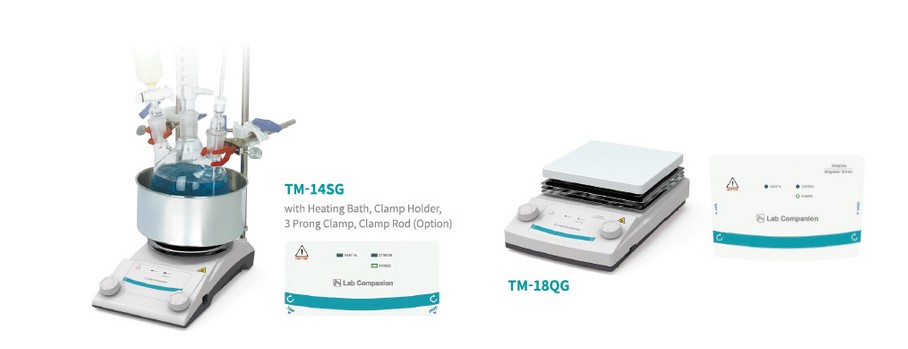

Basic Hotplate Stirrers
Inquire productEasy to control with simple dial knobs for general lab heating and stirring applications.
Performance & Convenience
- Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability.
- Fast and precise stirring operations are enabled by BLDC motor and special magnet with extremely strong magnetic coupling power.
- Instant halt of the stirring operation due to the exceptionally fast response characteristics.
- Smooth-start mechanism provides virtually no decoupling of stir bars even with viscous media.
- Large stirring capacity up to 20 liter in case of water.
- Non-slip heating bath with concavo-convex bottom prevents unintentional slips of the bath. (optional)
- A transparent safety shield protects users from liquid splashes. (optional)
- Support rod allows for diverse flexibility in configuring other test equipment and accessories. (optional)
Safety
- Built in thermal shutdown and current limit protection.
- Hot top warning Indicator for preventing accidental injuries.
- ※ CSA except for TM-18QG. ※ RoHS for TM-14SG.
- Technical Specifications
-
Model TM-14SG TM-17SG TM-18QG Heating
Temperature range (℃ / ℉)
Top plate, Max. 350 / 662
Control
Scale
Heating power (W)
600
800
Stirring
Speed range (rpm)
50 to 2,000
Capacity
(L / cu ft, H2O)
20 / 0.71
Magnetic bar, Max.
(ØxL, mm / Inch)8 x 40 / 0.31 x 1.57
Safety
Hot top indicator (℃ / ℉)
Warning lamp (50 / 122)
Over temp.
Top plate / Main body / PCB
Over current
Current limit protection
Motor
BLDC motor
Load, Max. (kg / Ibs)
25 / 55.12
Top plate
Shape
Round type
Square type
Material
Ceramic coated aluminum
Dimension
(Ø or WxD) (mm / inch)140 / 5.51
170 / 6.69
180x180/ 7.08x7.08
Body
Shape
Straight body
Material
Aluminum
Dimension
(WxDxH) (mm / inch)161x290x100/ 6.34x11.42x3.94
191x330x101/ 7.52x12.99x3.98
209x326x102/ 8.22x12.83x4.0
Net weight (kg / Ibs)
2.8 / 6.17
3.5 / 7.72
3.8 / 8.37
Electrical requirements (230V, 50/60Hz)
3.0 A 4.0 A Cat. No. AAH34245K AAH34275K AAH34285K Electrical requirements (120V, 60Hz)
5.0 A 6.7A Cat. No. AAH34243U AAH34273U AAH34283U ※ Permissible environmental conditions: temperature (5-40℃) and relative humidity (up to 80%).
※ CSA except for TM-18Q. ※ RoHS for TM-14SB.
