Magnetic Stirrers (Multi Position)

Inquire product

Powerful magnets and motors guarantee a high-speed and a goodmanagement of the devices.

Performance & Convenience

Ergonomic designed, lightweight, easy to operate, and low profile.
Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.
Spark-less, silent and durable BLDC motor.
Wide top plate.
Non-slip strength rubber feet.
Strong magnetic coupling to ensure constant stirring.
Digital PID feedback control for every single point, separately.
User-friendly operation and time setting modes allowing various ways of multi-position stirring to meet users’ demands:
single point, multiple point, whole row, whole column, etc.
Easy-to-read VFD and intuitive control panel.
Bright and vivid LED position indicating lamps.
Non-slip see-through silicon plate mat. (optional)
Chemical-resistant #304 grade stainless steel top-plate.

Safety

Technical Specifications

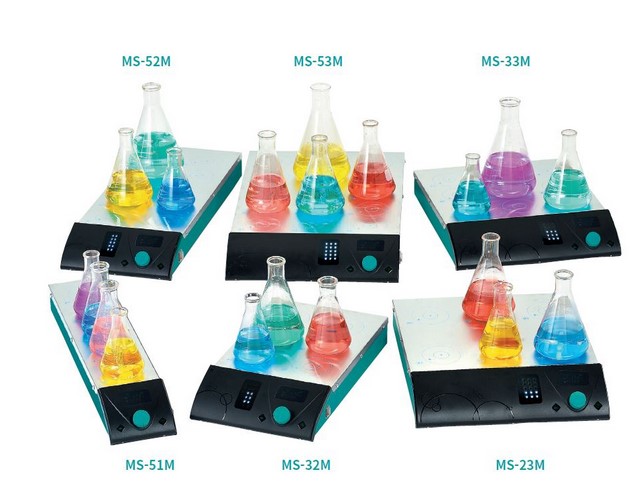

Model			MS-23M	MS-32M	MS-33M	MS-51M	MS-52M	MS-53M
Technical data	Speed control		Feedback control with PID
	Stirring	Position	6	6	9	5	10	15
	Stirring	Speed range (rpm)	30 to 2,000
	Stirring point distance (W×D) (mm / inch)		117×170 /4.6×6.69	117×90 /4.6×3.54	117×90 /4.6×3.54	90 / 3.54	117×90 / 4.6×3.54
	Timer		1 min. to 99 hr. 59 min.
	Speed display		VFD
	Motor rating input/ output (W) per each point		2.9 / 1.6
	Load, Max (kg / lbs)		30 / 66.14
General data	Dimension (W×D×H) (mm / inch)		377×436×82/ 14.8×17.2×3.2	254×436×82/ 10×17.2×3.2	377×436×81/ 14.8×17.2×3.2	131×603×82/ 5.2×23.7×3.2	254×602×82/ 10×23.7×3.2	377×599×82/ 14.9×23.6×3.2
	Weight (kg / lbs)		6 / 13.23	5 / 11.02	7 / 15.43	4 / 8.82	8 / 17.64	11 / 24.25
	Electrical requirements		AC 100 ~ 240V, 50 / 60Hz
	Power consumption (W)		45	45	54	45	85	135
	Protection class (DIN EN 60529)		IP 21
Cat. No.	KR plug		AAH332115K	AAH332215K	AAH332315K	AAH332415K	AAH332515K	AAH332615K
Cat. No.	US plug		AAH332115U	AAH332215U	AAH332315U	AAH332415U	AAH332515U	AAH332615U
