Model SK-300SII

Inquire product

A Planetary Centrifugal Mixer performs the two conflicting processes of mixing and degassing simultaneously in a short period of time for a wide range of materials of different viscosity levels. Furthermore, it keeps the temperature of the material down.

300 ml x 1 cup

Mode setting according to the application

SK-300SII, the new Medium mode has been added to the existing “mixing mode/degassing mode”.

Easy operation keeps same, it offers a wider range of applications and a selection of modes suited for the material.

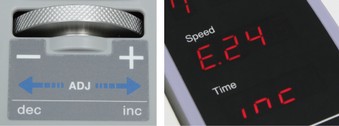

Equipped with a balance navigation function

The balance can be adjusted easily for the unbalance detection and balance navigation functions.

Compatible with 300 ml containers/max. 310 g

Despite its compact size, this model can be used to process 300 ml containers weighing a maximum of 310 g (gross weight)!!

Designed with a full range of safety functions

This unit is designed with such considerations for safety as top lid lock, operation lock during while the lid is open and a malfunction prevention mechanism. In addition, the unbalance error detection and a full range of functions for warning and notifying of motor problems or maintenance set alarm with peace of mind.

Exclusive mechanisms to the SK-300S2:

■ Medium mode

Due to the lower ratio of rotation speed makes mixing heat sustained, so even heat sensitive materials can be used.

■ Wave mode

The speeds of revolution and rotation makes up and down(fast and  slow) like wave motion, then enhanced more efficient mixing and  dispersing.

Technical specifications
Cup size
300ml × 1, Maximum 310g (Gross Weight)
No. of revolutions
 Mixer mode
200-2000rpm
Medium Mode
200-2000rpm
Degassing mode
400-2200rpm
No. of rotations
 Mixer mode
follows at 40% of revolutions
Medium Mode
follows at 20% of revolutions
Degassing mode
follows at 3% of revolutions
Time of setting
 Maximum 30 minutes (Total 9 steps)
Step mode Continues operation with 9 different action patterns(Condition setting) possible.
Memory channel 0-9 channel
Power supply voltage
 Single Phase AC200V-240V 50/60Hz
Power consumption
 About 1,380W
External dimensions (WxDxH)
 340 x 315 x 370 mm
Weight
Approx. 24kg
※ Medium mode/Wave mode are exclusively for SK-300SII.
※ In case of wave mode, revolution speed would differ up and down based on setting speed, with this reason, rotation speed follows up and down, too like wave.
※ Wave mode has revolving speed limitation ( Revolution: 1,000-1,790 rpm/ Rotation: about 400-716rpm)
Applications
  • - Battery manufacturers
  • - Electronic parts manufacturers
  • - Adhesive manufacturers
  • - Pigment and high functional material manufacturers
  • - Ceramic industry
  • - Defense and aerospace industry
  • - Cosmetic industry
  • - Medical and pharmaceutical industry
  • - Dental industry
