Viscometer Heating Baths
Inquire productPerformance
- Temperature range from ambient +5°Cto 150°C.
- Microprocessor PID control / Automatic tuning / Calibration.
- Optimal temperature equilibrium achieved by a vane type stirrer with strong circulation power.
Convenience
- Easy readout digital LED displays.
(0.01°Cresolution at 0 to 99.9°C/ 0.1°C resolution at 100 to 150°C) - Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
- Convenient memory function of up to three frequently set temperature.

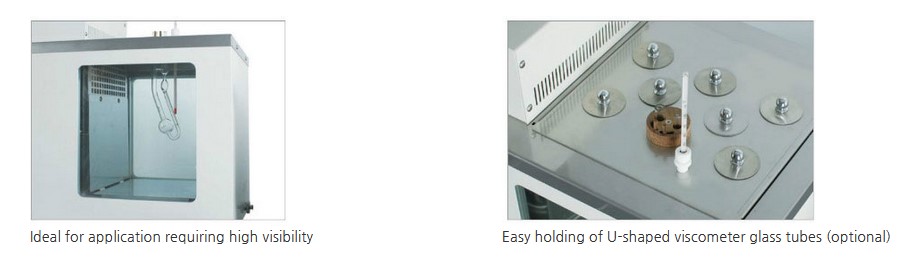

- Clear visibility provided by double tempered safety glass windows in front and rear sides.
(for operation from 10°C, use an optional cooling circulator) - Ø 51mm holes (for glass capillary viscometer tubes) and a Ø12.6 mm hole. (for a thermometer)
- RS-232 interface for external control and data collection.
- Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)
Safety
- Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact.
- Complete safety protection system with warning alarms.
– Low fluid level and dry-running, over-temperature, over-current.
- Technical Specifications
-
Model VB-25G VB-40G Bath volume (L / cu ft)
25 / 0.9
40 / 1.4
Temperature
Working temperature range (℃ / ℉)
Amb. +5 to 150 / Amb. +9 to 302
Temperature stability at 50℃ (±℃ / ℉)
0.1 / 0.18
0.1 / 0.18
Heat up time to 70℃ (min) (±℃ / ℉)
35
55
Dimension
Bath opening / depth (W×L, D) (mm / inch)
145×265, 330 / 5.7×10.4, 13
295×265, 330 / 11.6×10.4, 13
Cover lids / Hole for thermometer (mm)
5ea / Ø51, 1ea / Ø12.6
8ea / Ø51, 1ea / Ø12.6
Exterior (W×L×H) (mm / inch)
492×374×536 / 19.4×14.7×21.1
642×374×536 / 25.3×14.7×21.1
Net weight (kg / lbs)
28 / 61.7
37 / 81.6
Electrical requirements (230V)
60Hz, 13A 50Hz, 13A 60Hz, 13A 50Hz, 13A Cat. No.
AAH43302K AAH43302K AAH43402K AAH43402K ※ The lowest temperature that can be controlled depends on changes in room temperature and sample temperature.Therefore, please contact the distributor of our products before purchasing for technical consultation.
- Accessories&Options
-

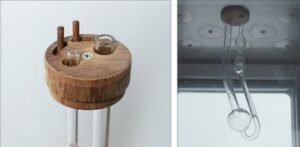

Viscometer tube holders
Specially designed to hold a two-opening viscometer glass tube and made of Bakelite, renowned for its high thermal endurance.
Cat. No. Suitable for AAA43501 VB-25G (need max. 5 holders) VB-40G (need max. 8 holders) Cooling circulators
The temperature range of viscometer heating baths can be lowered up to +10°C (+50°F) when used with an optional cooling circulator.
Cat. No. Description Suitable for AAH57051K RW3-1025 (230V, 60Hz) VB-25G (230V, 60Hz) AAH57651K RW3-1025P (230V, 60Hz) AAH57052K RW3-1025 (230V, 50Hz) VB-25G (230V, 50Hz) AAH57652K RW3-1025P (230V, 50Hz) AAH57061K RW3-2025 (230V, 60Hz) VB-40G (230V, 60Hz) AAH57661K RW3-2025P (230V, 60Hz) AAH57062K RW3-2025 (230V, 50Hz) VB-40G (230V, 50Hz) AAH57662K RW3-2025P (230V, 50Hz) * More information on the cooling circulators.

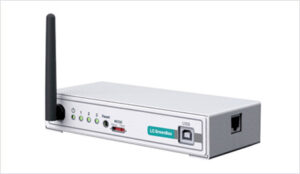

LC GreenBox
Real-time monitoring and control of device operation via mobile app. Up to 4 devices can be connected at once.
Cat. No. Description AAHQ1011K JGW-4
